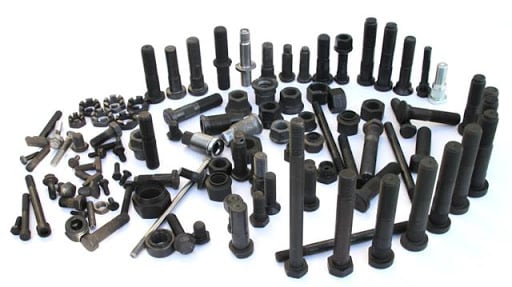

    Genel Bağlantı Elemanları Standartları

    8 Mayıs 2021Yorum yapılmamış9 Mins Read
    Share
    Facebook Twitter LinkedIn Email Telegram WhatsApp

    Not: Aşağıdaki tablo, standartlar arasında genellikle boyutsal farklılıklar olduğu için yalnızca rehberlik amacıyla verilmiştir.

    DIN StandardISO StandardBritish StandardProduct
    DIN 1ISO 2339 Cone Pins, untempered
    DIN 125ISO 7089 Washers; medium type, primarily for hexagon bolts
    DIN 125ISO 7090 Washers; medium type, primarily for hexagon bolts
    DIN 126ISO 7091 Product grade C washers – designed for use with hexagon head bolts and nut
    DIN 127 BS4464BSpring lock washers with square ends or tang ends
    DIN 128  Curved and wave spring lock washers
    DIN 137  Spring washers, curved or wave
    DIN 1440ISO 8738 Medium type washers for pins
    DIN 1443ISO 2340 Clevis pins without head
    DIN 1444ISO 2341 Clevis pins with head
    DIN 1470ISO 8739 Grooved Pins, Full Length Parallel-grooved with Pilot
    DIN 1471ISO 8744 Grooved Pins, Full Length Taper-grooved
    DIN 1472ISO 8745 Grooved Pins, Half Length Taper-grooved
    DIN 1473ISO 8740 Grooved Pins, Full Length Parallel-grooved with Chamfer
    DIN 1474ISO 8741 Grooved Pins, Half Length Reverse-grooved
    DIN 1475ISO 8742 Grooved Pins, Third Length Centre-grooved
    DIN 1476ISO 8746 Round Head Grooved Pins
    DIN 1477ISO 8747 Countersunk Head Grooved Pins
    DIN 1481ISO 8752 Spring-Type Straight Pins (Roll Pins) – Heavy Type
    DIN 1587  Hexagon domed cap nuts
    DIN 1816  Round Nut with Set Pin Holes Inside; ISO Metric Fine Thread
    DIN 315  Wing nuts with rounded wings
    DIN 316  Wing screws with rounded wings
    DIN 404  Slotted capstan screws
    DIN 417ISO 7435 Slotted set screws with long dog point
    DIN 427ISO 2342 Slotted headless screws with chamfered end
    DIN 428ISO 4034 Hexagon nuts, Grade C
    DIN 433ISO 7092 Washers for use with cheese head screws
    DIN 433-1ISO 7092 Product grade A washers – with a hardness up to 250 HV designed for use with cheese head screws
    DIN 433-2ISO 7092 Product grade A washers – with a hardness up to 300 HV designed for use with cheese head screws
    DIN 438ISO 7436 Slotted set screws with cup point
    DIN 439ISO 4035BS3692Hexagon thin nuts
    DIN 439ISO 4036BS3692Hexagon thin nuts
    DIN 439ISO 8675BS3692Hexagon thin nuts
    DIN 439-1ISO 4036 Unchamfered hexagon thin nuts – Product grade B
    DIN 439-2ISO 4035 Chamfered hexagon thin nuts – Product grades A and B
    DIN 439-2ISO 8675 Chamfered hexagon thin nuts – Product grades A and B
    DIN 440ISO 7094 Washers for use in timber constructions
    DIN 444  Eyebolts
    DIN 462  Machine Tools; Internal Tab Washers for Slotted Round Nuts for Hook Spanner according to DIN 1804
    DIN 464  Knurled thumb screws, high type
    DIN 466  Knurled nuts, high type
    DIN 467  Knurled nuts, low type
    DIN 471  Circlips (retaining rings) for shafts; Normal type and heavy type
    DIN 479  Square head bolts with short dog point
    DIN 5406  Lockwashers and locking plates for use with rolling bearings
    DIN 548  Round nuts with set pin holes in side
    DIN 551ISO 4766 Slotted set screws with flat point
    DIN 553ISO 7434 Slotted set screws with cone point
    DIN 555ISO 4034 M5 to M100x6 hexagon nuts – Product grade C
    DIN 558ISO 4018 Hexagon head screws
    DIN 580  Collar eyebolts for lifting purposes
    DIN 601ISO 4016 M5 to M52 hexagon head bolts; product grade C
    DIN 603  Mushroom head square neck bolts
    DIN 609  Hexagon fits bolts with long thread
    DIN 6319  Spherical washers and conical seats
    DIN 6325ISO 8734 Parallel Pins, Hardened; Tolerance Zone m6
    DIN 6340  Washers for clamping devices
    DIN 653  Knurled thumb screws, low type
    DIN 6797  Toothed lock washers
    DIN 6798  Serrated lock washers
    DIN 6799  Lock washers (retaining washers) for shafts
    DIN 6900ISO 10644 Screw and Washer Assemblies
    DIN 6901ISO 10510 Tapping screw and washer assemblies
    DIN 6902ISO 10673 Plain washers for screw and washer assemblies
    DIN 6903ISO 10669 Plain washers for tapping screw and washer assemblies
    DIN 6912  Hexagon socket thin head cap screws with pilot recess
    DIN 6914ISO 14399-4 High-strength hexagon head bolts with large widths across flats for structural steel bolting
    DIN 6916  Round washers for high-strength structural steel bolting
    DIN 6921ISO 1665 Hexagon flange bolts
    DIN 6922ISO 1665 Hexagon flange bolts with reduced shank
    DIN 6923ISO 1661 Hexagon nuts with flange
    DIN 6924ISO 7040 Prevailing torque type hexagon nuts with nonmetallic insert
    DIN 6924ISO 10512 Prevailing torque type hexagon nuts with nonmetallic insert
    DIN 6925ISO 7042 Prevailing torque type all-metal hexagon nuts
    DIN 6925ISO 10513 Prevailing torque type all-metal hexagon nuts
    DIN 6926ISO 7043 Prevailing torque type hexagon nuts with flange and with non-metallic insert
    DIN 6926ISO 12125 Prevailing torque type hexagon nuts with flange and with non-metallic insert
    DIN 6927ISO 7044  Prevailing torque type all-metal nuts with flange
    DIN 6927ISO 12126  Prevailing torque type all-metal nuts with flange
    DIN 7045  Pan head screws with type H or type Z cross recess – product grade A
    DIN 7337ISO 14589 Break mandrel blind rivets
    DIN 7337ISO 15977 to ISO 15984 Break mandrel blind rivets
    DIN 7337ISO 16582 to ISO 16584 Break mandrel blind rivets
    DIN 7343ISO 8750 Spiral Pins; Normal Type
    DIN 7344ISO 8748 Spiral Pins; Heavy Duty Type
    DIN 7346ISO 13337 Spring-Type Straight Pins; (Roll Pins) Light-weight Type
    DIN 7349  Plain Washers for Bolts with Heavy Clamping Sleeves
    DIN 7500-1ISO 7085 Thread rolling screws for metric ISO thread – Part 1: Types, designation, requirements
    DIN 7500-2  Thread rolling screws for ISO metric thread; guideline values for hole diameters
    DIN 7504  Self-drilling screws with tapping screw thread – Dimensions, requirements and testing
    DIN 7513  Hexagon head and slotted head thread cutting screws – Dimensions, requirements and testing
    DIN 7516  Cross recessed head thread cutting screws – Dimensions, requirements and testing
    DIN 7603  Ring seals and gaskets
    DIN 7970ISO 1478 Threads and thread ends for tapping screws (modified version of ISO 1478)
    DIN 7971ISO 1481BS4174Slotted pan head tapping screws
    DIN 7972ISO 1482 Slotted countersunk head tapping screws
    DIN 7973ISO 1483 Slotted raised countersunk head tapping screws
    DIN 7977ISO 8737 Taper Pins with Thread Ends and Constant Point Lengths
    DIN 7978ISO 8736 Taper Pins with Internal Thread
    DIN 7979ISO 8733 Parallel Pins with Internal Thread
    DIN 7979ISO 8735 Parallel Pins with Internal Thread
    DIN 7980 BS4464ASpring lock washers with square ends for cheese head screws
    DIN 7981ISO 7049 Cross recessed pan head tapping screws
    DIN 7982ISO 7050 Cross recessed countersunk head tapping screws
    DIN 7983ISO 7051 Countersunk (Flat) Head Tapping Screws with Cross Recess
    DIN 7984  Hexagon socket thin head cap screws
    DIN 7985ISO 7045BS4183Cross recessed raised Phillips Pan head screws
    DIN 7989-1  Washers for steel structures – Product grade C
    DIN 7989-2  Washers for steel structures – Product grade A
    DIN 7991ISO 10642BS4168Hexagon socket countersunk head cap screws
    DIN 84ISO 1207BS4183Product grade A slotted cheese head screws
    DIN 85ISO 1580BS4183Product grade A slotted pan head screws
    DIN 9021ISO 7093 Plain washers with large outside diameter
    DIN 908  Hexagon socket screw plugs with parallel screw thread
    DIN 910  Hexagon-duty hexagon head screw plugs
    DIN 911ISO 2936 Hexagon Socket Screw Keys
    DIN 912ISO 4762BS4168Hexagon socket head cap screws (modified version of ISO 4762)
    DIN 912 ISO 21268BS4168Hexagon socket head cap screws (modified version of ISO 4762)
    DIN 913ISO 4026 Hexagon socket set screws with flat point (ISO 4026 modified)
    DIN 914ISO 4027 Hexagon socket set screws with cone point (ISO 4029 modified)
    DIN 915ISO 4028 Hexagon socket set screws with full dog point
    DIN 916ISO 4029 Hexagon socket set screws with cup point (ISO 4029 modified)
    DIN 918-3  Overview of European Standards for fasteners
    DIN 921  Slotted pan head screws with large head
    DIN 923  Slotted pan head screws with shoulder
    DIN 929  Hexagon weld nuts
    DIN 93  Tab washers with long tab
    DIN 930  Fine thread pitch partially threaded screws
    DIN 931-1ISO 4014BS3692M1,6 to M39 Hexagon Cap Screws Partially Threaded – Product grades A and B
    DIN 931-2ISO 4014BS3692M42 to M160x6 Hexagon Cap Screws Partially Threaded – Product grade B
    DIN 933ISO 4017BS3692M1,6 to M52 Hexagon Cap Screws Fully Threaded – Product grades 8.8
    DIN 934ISO 4032 Hexagon nuts with metric coarse and fine pitch thread – Product classes A and B
    DIN 934ISO 8673 Hexagon nuts with metric coarse and fine pitch thread – Product classes A and B
    DIN 935-1  Hexagon slotted nuts and castle nuts with metric coarse and fine pitch thread – Product grades A and B
    DIN 935-2  M42 to M160x6 hexagon head bolts; product grade B
    DIN 935-3  Hexagon slotted nuts with metric coarse pitch thread – Product grade C
    DIN 936 BS3692M8 to M52 and M8x1 to M52x3 hexagon thin nuts; product grades A and B
    DIN 937  Hexagon thin castle nuts
    DIN 938  Studs with a length of engagement equal to about 1 d
    DIN 939  Studs with a length of engagement equal to about 1,25 d
    DIN 94ISO 1234 Split pins
    DIN 95  Slotted Raised Countersunk (Oval) Head Wood Screws
    DIN 96  Slotted Round Head Wood Screws
    DIN 960ISO 8765 M8x1 to M100x4 hexagon head bolts with fine pitch thread – Product grades A and B
    DIN 960ISO 8676 M8x1 to M100x4 hexagon head bolts with fine pitch thread – Product grades A and B
    DIN 961ISO 8676 M8x1 to M52x3 hexagon head bolts with fine pitch thread – Product grades A and B
    DIN 962  Designation system for fasteners
    DIN 963ISO 2009BS3692Slotted countersunk head screws (with countersunk heads as specified in ISO 2009-1972)
    DIN 964ISO 2010BS3692Slotted raised countersunk oval head screws
    DIN 965ISO 7046BS3692Cross recessed countersunk flat head screws
    DIN 966ISO 7047 Cross recessed raised countersunk head screws
    DIN 970ISO 4032 Hexagon nuts; Style 1; Metric coarse thread, Product grades A and B; ISO 4032 modified
    DIN 971-1ISO 8673 Style 1 hexagon nuts with metric fine pitch thread; property classes 6 and 8
    DIN 971-2ISO 8674 Style 2 hexagon nuts with metric fine pitch thread; property classes 10 and 12
    DIN 972ISO 4034 M5 to M39 hexagon nuts; style 1; product grade C (modified version of ISO 4034)
    DIN 975  Threaded rods
    DIN 976-1  Metric thread stud bolts
    DIN 976-2  Metric interference-fit thread stud bolts
    DIN 977ISO 21670 Hexagon weld nuts with flange
    DIN 979  Hexagon thin slotted nuts and castle nuts with metric coarse and fine pitch thread – Product grades A and B
    DIN 980ISO 7042 All-metal prevailing torque type hexagon nuts
    DIN 980ISO 10513 All-metal prevailing torque type hexagon nuts
    DIN 981  Locknuts for use with rolling bearings
    DIN 982ISO 7040 Prevailing torque type hexagon nuts with nonmetallic insert
    DIN 982ISO 10512 Prevailing torque type hexagon nuts with nonmetallic insert
    DIN 983  Retaining rings with lugs for use on shafts (external circlips)
    DIN 985ISO 10511 Prevailing torque type hexagon thin nuts with nonmetallic insert
    DIN 986  Prevailing torque type hexagon domed cap nuts with non-metallic insert
    DIN 988  Shim rings and supporting rings
    alman standartları british standartları cıvata standartları DIN standartları Genel Bağlantı Elemanları Standartları ingiliz standartları ISO standartları pul standartları rondela standartları somun standartları
    Share. Facebook Twitter LinkedIn WhatsApp Email Telegram
    Previous ArticleSıkma Torkları – Altıgen ve Altı Kanallı Soketli ve Düz Başlı Bağlantı Elemanları
    Next Article M2-M3 Kategorisi Regülasyon Geçiş Tarihleri

    İlgili Yazılar

    EU 2022/545 Araç Olay Veri Kaydedici

    ECE R160 Olay Veri Kaydedici (Event Data Recorder – EDR)

    ISO/SAE 21434 Cyber Security (Siber Güvenlik) Standardı

    Leave A Reply Cancel Reply

    EU 2022/545 Araç Olay Veri Kaydedici

    12 Mart 2023

    ECE R160 Olay Veri Kaydedici (Event Data Recorder – EDR)

    2 Mart 2023

    ISO/SAE 21434 Cyber Security (Siber Güvenlik) Standardı

    25 Şubat 2023

    EU 2021/1243 Alkol Kilidi Kurulum Ön Hazırlığı

    12 Mayıs 2022

    Abone Ol

    Homologasyon.com'dan en son haberleri alın..!

    Etiket Bulutu
    Araç Tip Onay Haberler L Kategorisi M Kategorisi N Kategorisi O Kategorisi Regülasyon Resmi Gazete R Kategorisi S Kategorisi Standartlar T Kategorisi Yönetmelik
    Hakkımızda

    Otomotive dair haberler, yeni gelişmeler, yeni teknolojiler, regülasyon, yönetmelik, araç tip onayı gibi konularda bilgi paylaşmak amacıyla kurulmuş gelişmeye açık bir platformdur.

    info@homologasyon.com

    Homologasyon – Otomotiv Platformu
    Facebook X (Twitter) RSS
    • Yasal Uyarı
    • Gizlilik
    • Reklam
    • Bize Ulaşın
    © 2025 Homologasyon.com - Tüm hakları saklıdır.

    Type above and press Enter to search. Press Esc to cancel.
